EBC PD10KR220 Seat VW Orangestuff Rear Brake Pad & USR Disc Kit - ATE Caliper
EBC PD10KR220 Seat VW Orangestuff Rear Brake Pad & USR Disc Kit - ATE Caliper
Tax included.
Couldn't load pickup availability
Description

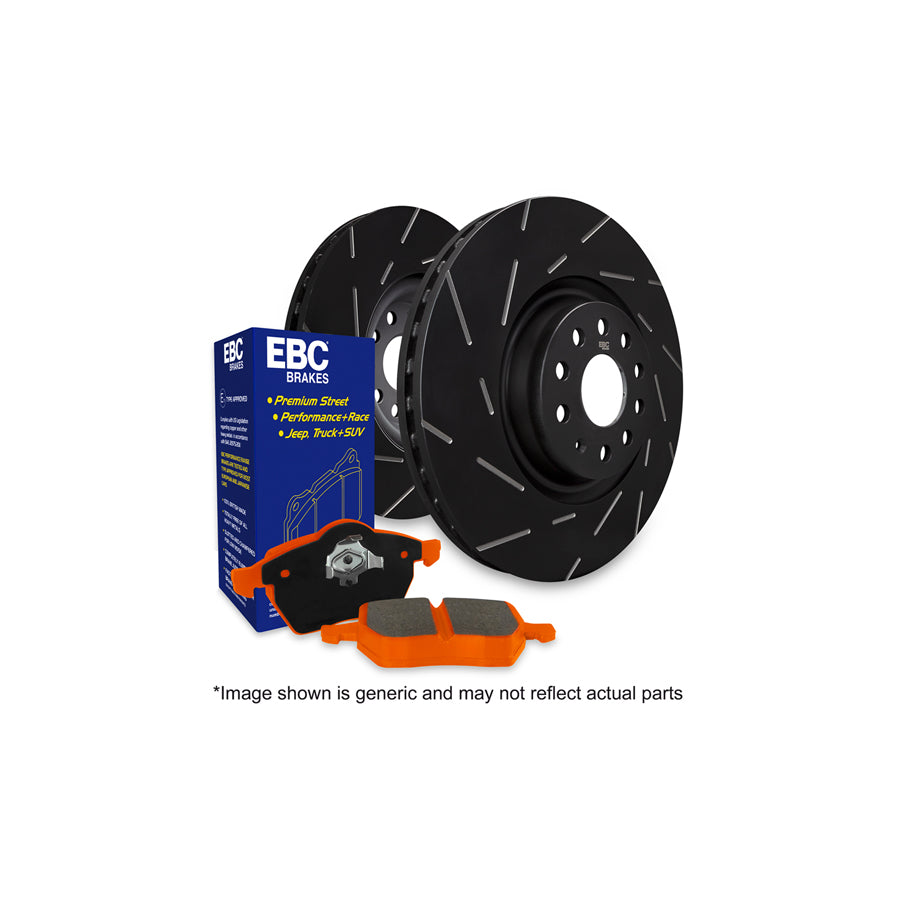

- Kit contains one set of DP91497 Orangestuff brake pads and one pair of USR1283 USR slotted brake discs
- Money saving brake kit including one set of pads and a pair of discs
- Orangestuff series was developed as a full race pad with a high friction level that increases with temperature.
- This material works best on light to middleweight high powered race cars where a higher fade resistance and wear life is desirable compared to Yellowstuff. Despite having an acceptable cold friction making this material street usable, the hot friction is deemed too high for ECE R90 approval and therefore this material is not road legal within Europe.
One pair of slotted upgrade brake discs, slots dispel gasses and debris and give quiet braking. Manufactured from unique disc alloys and thermic black coated for corrosion resistance. These discs are runout tested.
Features
| Pad A Dimensions | : | 87 x 53 x 17 |
| Pad B Dimensions | : | 87 x 53 x 17 |
| Disc Type | : | Slotted |
| Solid or Vented | : | S |
| Bolt Holes | : | 5 |
| Disc Diameter (mm) | : | 255 |
| Disc Height (mm) | : | 51 |
| Disc Thickness (new) (mm) | : | 10 |
| Disc Thickness (min) (mm) | : | 9 |
| Kit Components | : | DP91497 + USR1283 |
Compatibility
| Model | Sub-Model | Engine | BHP | Year | Position |
| Altea | - | 1.2 Turbo | - | 2010-2016 | Rear |
| Altea | - | 1.4 | - | 2006-2016 | Rear |
| Altea | - | 1.4 Turbo | - | 2007-2016 | Rear |
| Altea | - | 1.6 | - | 2004-2016 | Rear |
| Altea | - | 1.8 Turbo | - | 2006-2016 | Rear |
| Altea | - | 2 | - | 2004-2016 | Rear |
| Altea | - | 2.0 Turbo FR | 200 | 2005-2016 | Rear |
| Altea | - | 2.0 Turbo | 211 | 2010-2016 | Rear |
| Altea | - | 1.6 TD | - | 2009-2016 | Rear |
| Altea | - | 1.9 TD | - | 2004-2016 | Rear |
| Altea | - | 2.0 TD | 140 | 2004-2016 | Rear |
| Altea | - | 2.0 TD FR | 170 | 2006-2016 | Rear |
| Toledo | - | 2 | - | 2004-2009 | Rear |
| Toledo | - | 1.9 TD | 103 | 2005-2009 | Rear |
| Toledo | - | 2.0 TD | 140 | 2005-2009 | Rear |
| Model | Sub-Model | Engine | BHP | Year | Position |
| Eos | - | 1.4 Turbo | - | 2008-2014 | Rear |
| Eos | - | 1.6 | 115 | 2006-2008 | Rear |
| Eos | - | 2 | 150 | 2006-2008 | Rear |
| Eos | - | 2.0 TD | 140 | 2006-2014 | Rear |
| Golf (Mk5) | - | 1.4 | - | 2003-2009 | Rear |
| Golf (Mk5) | - | 1.4 Turbo | 140 | 2005-2007 | Rear |
| Golf (Mk5) | - | 1.4 Turbo | 170 | 2005-2007 | Rear |
| Golf (Mk5) | - | 1.4 Turbo | 120 | 2007-2009 | Rear |
| Golf (Mk5) | - | 1.6 | - | 2003-2009 | Rear |
| Golf (Mk5) | - | 2 | 150 | 2004-2009 | Rear |
| Golf (Mk5) | - | 1.9 TD | 90 | 2003-2009 | Rear |
| Golf (Mk5) | - | 1.9 TD | 105 | 2003-2009 | Rear |
| Golf (Mk5) | - | 2.0 D | 75 | 2004-2009 | Rear |
| Golf (Mk5) | - | 2.0 TD | 140 | 2003-2009 | Rear |
| Golf (Mk6) | - | 1.4 Turbo | 160 | 2009-2013 | Rear |
| Golf (Mk6) | - | 2.0 TD | 140 | 2009-2013 | Rear |
| Jetta (Mk5) | - | 1.6 | - | 2005-2010 | Rear |
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
EBC-PD10KR220
More Information
Manufactured by
EBC Brakes
Warranty
EBC one year or 10,000 miles warranty
