Brembo

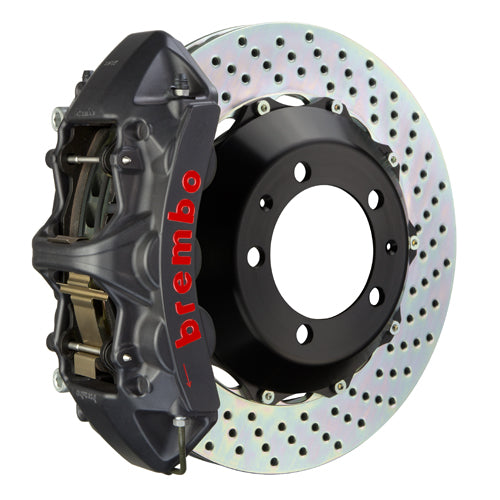

Brembo 1M-.9041A 6-Piston Cast Monobloc Calipers 380x32mm (15'') 2-Piece Discs Brake Disc (Front)
Brembo 1M-.9041A 6-Piston Cast Monobloc Calipers 380x32mm (15'') 2-Piece Discs Brake Disc (Front)
Tax included.
Couldn't load pickup availability
Description
This is 6-Piston Cast Monobloc Calipers | 380x32mm (15'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included, Front
Features
Caliper
| Caliper Body | : | Cast Monobloc Radial Mount |
| Caliper Piston Configuration | : | 6-Piston |
| Caliper Piston Design And Insert Type | : | Inner Pressure Seal / Recessed Dust Boot / Stainless Steel Insert |
Disc
| Disc Material/Finish | : | Advanced High Carbon Alloy / Corrosion Resistant Plating |
| Disc Diameter | : | 328mm |
| Disc Width (Measurement) | : | 28mm |
| Disc Air Gap (Measurement) | : | 17mm |
| Disc Annulus (Measurement) | : | 54mm |
| Disc Construction | : | 2-Piece Disc Assembly |
| Disc Vane Design (Measurement) | : | Vented Curved 48 Vane |
| Disc To Hat Mounting System | : | Floating D-Bobbin with Anti Rattle Spring |
Friction Material
| Pad Compound | : | Brembo High Performance FM1000 |
| Pad Volume / Surface Area | : | 48.2 | 53.6 |
What's Included
- Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
- Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
Compatibility
- 228I M-SPORT BRAKES (EXCLUDING XDRIVE) (F22)
- 230I M-SPORT BRAKES (EXCLUDING XDRIVE) (F22)
- 328D / 328D XDRIVE M-SPORT BRAKES (F30)
- 328D XDRIVE TOURING M-SPORT BRAKES (F31)
- 328I M-SPORT BRAKES (EXCLUDING XDRIVE) (F30)
- 328I XDRIVE GRANTURISMO / TOURING M-SPORT BRAKES (F31 / F34)
- 328I XDRIVE M-SPORT BRAKES (F30)
- 330I M-SPORT BRAKES (EXCLUDING XDRIVE) (F30)
- 330I XDRIVE GRANTURISMO / TOURING M-SPORT BRAKES (F31 / F34)
- 330I XDRIVE M-SPORT BRAKES (F30)
- 335I / 335I XDRIVE (EXCLUDING M-SPORT BRAKES) (F30)
- 335I / 335I XDRIVE GRANTURISMO (EXCLUDING M-SPORT BRAKES) (F34)
- 335I / 335I XDRIVE GRANTURISMO M-SPORT BRAKES (F34)
- 335I / 335I XDRIVE M-SPORT BRAKES (F30)
- 340I / 340I XDRIVE (EXCLUDING M-SPORT BRAKES) (F30)
- 340I / 340I XDRIVE GRANTURISMO (EXCLUDING M-SPORT BRAKES) (F34)
- 340I / 340I XDRIVE GRANTURISMO M-SPORT BRAKES (F34)
- 340I / 340I XDRIVE M-SPORT BRAKES (F30)
- 428I / 428I XDRIVE GRAN COUPE M-SPORT BRAKES (F36)
- 428I M-SPORT BRAKES (EXCLUDING XDRIVE) (F32 / F33)
- 428I XDRIVE M-SPORT BRAKES (F32 / F33)
- 430I / 430I XDRIVE GRAN COUPE M-SPORT BRAKES (F36)
- 430I M-SPORT BRAKES (EXCLUDING XDRIVE) (F32 / F33)
- 430I XDRIVE M-SPORT BRAKES (F32 / F33)
- 435I / 435I XDRIVE (EXCLUDING M-SPORT BRAKES) (F32 / F33)
- 435I / 435I XDRIVE GRAN COUPE (EXCLUDING M-SPORT BRAKES) (F36)
- 435I / 435I XDRIVE GRAN COUPE M-SPORT BRAKES (F36)
- 435I / 435I XDRIVE M-SPORT BRAKES (F32 / F33)
- 440I / 440I XDRIVE (EXCLUDING M-SPORT BRAKES) (F32 / F33)
- 440I / 440I XDRIVE GRAN COUPE (EXCLUDING M-SPORT BRAKES) (F36)
- 440I / 440I XDRIVE GRAN COUPE M-SPORT BRAKES (F36)
- 440I / 440I XDRIVE M-SPORT BRAKES (F32 / F33)
- M135I (F20 / F21)
- M140I (F20 / F21)
- M235I (F22)
- M240I (F22)
Feel free to contact us at should you wish to double check!
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
BREMBO-1M1.9041AS (Cross Drilled / Black Hard Anodized)
More Information
Manufactured by
Brembo
