Brembo 1N-.8520A 6-Piston Billet Monobloc Calipers 365mm (14.4'') 2-Piece Discs Brake Disc (Front)

Description

This is 6-Piston Billet Monobloc Calipers | 365mm (14.4'') 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included, Front

Features

Caliper

Caliper Body	:	Billet Monobloc Radial Mount
Caliper Piston Configuration	:	6-Piston
Caliper Piston Design And Insert Type	:	Inner Pressure Seal / Recessed Dust Boot / Ventilated Stainless Steel Insert

Disc

Disc Material/Finish	:	Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter	:	328mm
Disc Width (Measurement)	:	28mm
Disc Air Gap (Measurement)	:	17mm
Disc Annulus (Measurement)	:	54mm
Disc Construction	:	2-Piece Disc Assembly
Disc Vane Design (Measurement)	:	Vented Curved 48 Vane
Disc To Hat Mounting System	:	Floating D-Bobbin with Anti Rattle Spring

Friction Material

Pad Compound	:	Brembo High Performance FM1000
Pad Volume / Surface Area	:	48.2 | 53.6

What's Included

• Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
• Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

Compatibility

Feel free to contact us at should you wish to double check!

Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Part Number

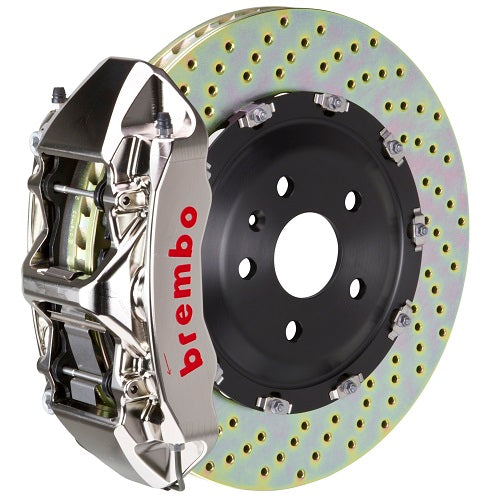

BREMBO-1N1.8520AR (Cross Drilled / Nickel Plated)

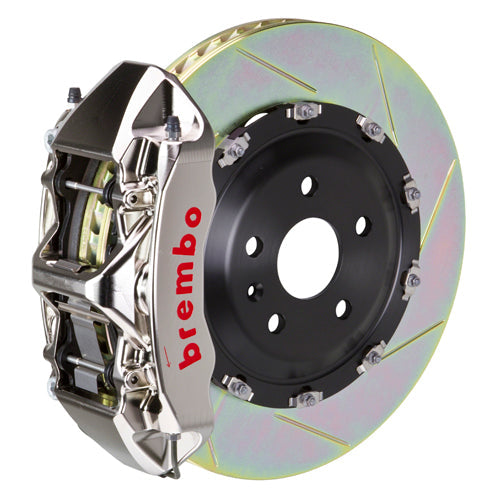

BREMBO-1N2.8520AR (TY1 / Nickel Plated)

More Information

Manufactured by

Brembo
