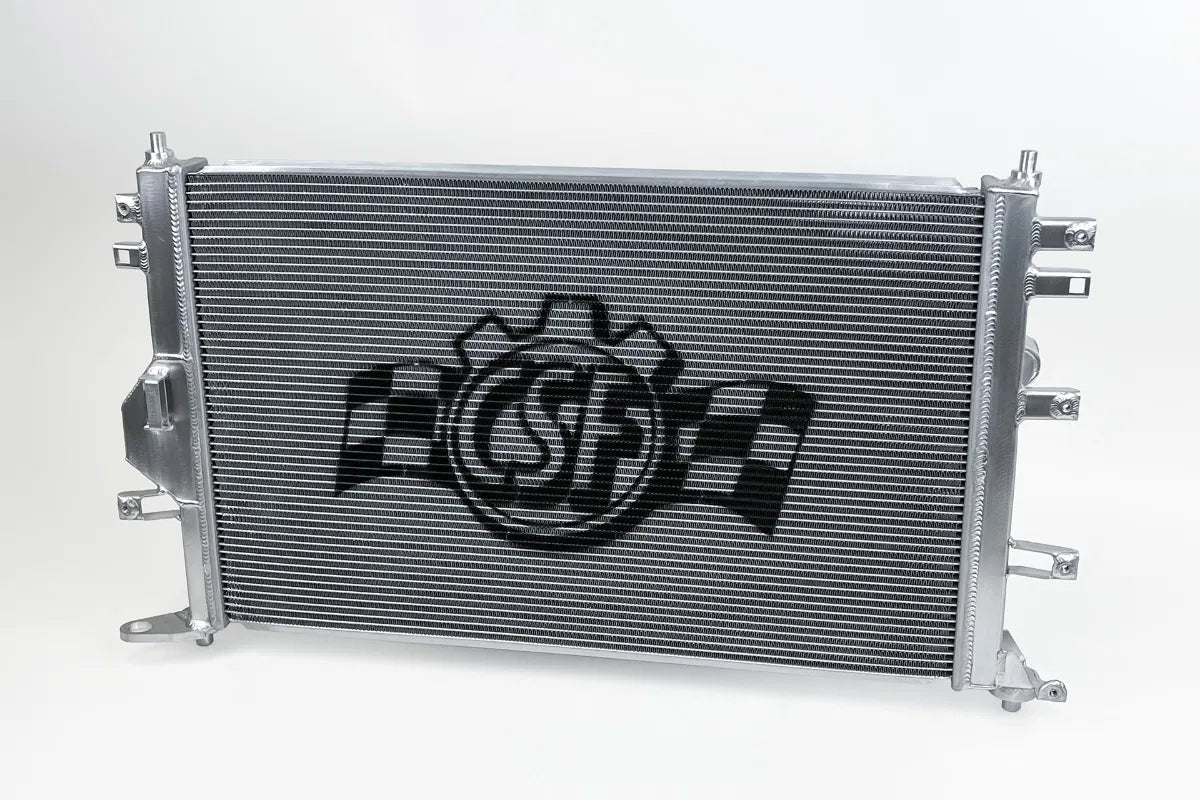

CSF High-Performance Radiator For GR Corolla & GR Yaris

Description

The original OE radiator from Toyota is a plastic tank with a single row aluminum core design. While this is generally accepted as good quality and durable, there is always room for improvement. The 5mm fins on the OE radiator made the system fairly efficient for a factory unit. The core itself is one of the biggest limiting factors at only 27mm thick and a single cooling row.

Features

• 2-Row, 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Pre-plugged 1/8th NPT temperature sensor port on right side tank
• Pre-installed foam strips on top and bottom end plates for increased sealing
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested


Compatibility

Applications:

• 2023+ Toyota GR Corolla
• 2020+ Toyota GR Yaris


OEM Part Numbers:

• Toyota: 16400-18060 (GR Corolla)
• Toyota: 16400-18050 (GR Yaris)


Compatibility Check

To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.

Part Number

CSF-7233

More Information

Manufactured by

CSF Radiators

Warranty

2-Year Limited Warranty
