EBC BRAKES

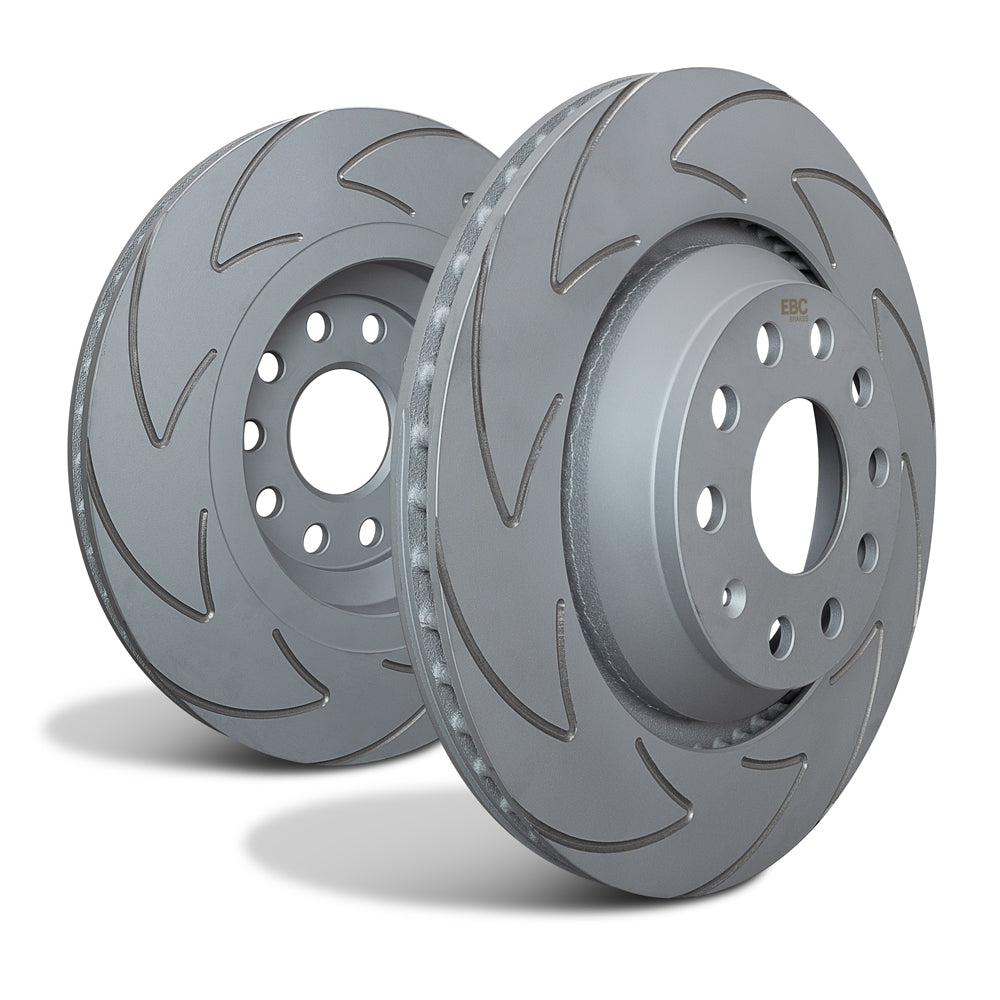

EBC BSD553 BMW E36 E46 Grooved Discs Front - ATE Caliper (Inc. Z3 & Z4) (Pair)
EBC BSD553 BMW E36 E46 Grooved Discs Front - ATE Caliper (Inc. Z3 & Z4) (Pair)
Couldn't load pickup availability
Description
Featuring bi-directional fine slots.
Tthe new EBC Brakes BSD series brake discs vent the brake area better, drawing heat away from the central brake pad area and with more slot under the pad contact area.
These discs are totally silent in operation and de-gas your brakes when used at speed or under heavier loads minimising heat fade.
Now with lower pricing and the thermic black anti corrosion coating with show-thru silver slots, these discs are surely the best through wheel looks and most functional sport discs on sale.
The fine slot pattern prevents the _Ribs� that typically generate after 5-10,000 miles of use on non slotted discs and maintain flat and parallel pad wear and due to the fine slot design can even extend pad wear life.
Features
| Disc Type | : | Slotted |
| Solid or Vented? | : | V |
| Disc Bolts | : | 5 |
| Disc Diameter | : | 286mm |
| Disc Height | : | 52mm |
| Disc Thickness New | : | 22mm |
| Disc Thickness Min | : | 20mm |
| PCD | : | 120mm |
| Center Hole Diameter | : | 79mm |
What's Included
- 2 x Brake Disc
Compatibility
| Model | Sub-Model | Engine | BHP | Year | Position |
| 3 Series (E36) | 318 | 1.8 | - | 1991-1998 | Front |
| 3 Series (E36) | 318 | 1.8 | - | 1992-1995 | Front |
| 3 Series (E36) | 318 | 1.9 | - | 1994-2001 | Front |
| 3 Series (E36) | 318 | 1.9 | - | 1998-2001 | Front |
| 3 Series (E36) | 318 | 1.9 | - | 1995-1999 | Front |
| 3 Series (E36) | 320 | 2 | - | 1991-1998 | Front |
| 3 Series (E36) | 320 | 2 | - | 1992-1999 | Front |
| 3 Series (E36) | 323 | 2.5 | - | 1995-1999 | Front |
| 3 Series (E36) | 323 | 2.5 | - | 1997-2000 | Front |
| 3 Series (E36) | 325 | 2.5 TD | - | 1993-1998 | Front |
| 3 Series (E36) | 325 | 2.5 | - | 1990-1999 | Front |
| 3 Series (E36) | 328 | 2.8 | - | 1995-2000 | Front |
| 3 Series (E46) | 316 | 1.6 | - | 2000-2006 | Front |
| 3 Series (E46) | 316 | 1.8 | - | 2001-2006 | Front |
| 3 Series (E46) | 316 | 1.8 | - | 2001-2005 | Front |
| 3 Series (E46) | 316 Touring | 1.8 | - | 2001-2006 | Front |
| 3 Series (E46) | 316 | 1.9 | - | 1999-2001 | Front |
| 3 Series (E46) | 318 | 1.9 | - | 1998-1999 | Front |
| 3 Series (E46) | 318 | 1.9 | - | 1999-2001 | Front |
| 3 Series (E46) | 318 | 2.0 TD | - | 2002-2006 | Front |
| 3 Series (E46) | 318 | 2.0 TD | - | 2003-2005 | Front |
| 3 Series (E46) | 318 | 2 | - | 2001-2007 | Front |
| 3 Series (E46) | 318 | 2 | - | 2001-2005 | Front |
| 3 Series (E46) | 320 | 2.0 TD | 136 | 1998-2002 | Front |
| 3 Series (E46) | 320 | 2 | - | 1998-2000 | Front |
| 3 Series (E46) | 320 | 2 | - | 1999-2000 | Front |
| 3 Series (E46) | 320 | 2.2 | - | 2000-2007 | Front |
| 3 Series (E46) | 320 | 2.2 | - | 2000-2006 | Front |
| 3 Series (E46) | 323 | 2.5 | - | 1998-2000 | Front |
| Z3 | - | 2 | 150 | 1999-2000 | Front |
| Z3 | - | 2.2 | 170 | 2000-2003 | Front |
| Z3 | - | 2.8 | 193 | 1997-1998 | Front |
| Z3 | - | 2.8 | 193 | 1998-2000 | Front |
| Z4 | E85 | 2 | 150 | 2005-2009 | Front |
| Z4 | E85 | 2.2 | 170 | 2003-2009 | Front |
| Z4 | E85 | 2.5 | 192 | 2003-2006 | Front |
| Z4 | E85 | 2.5 | 177 | 2006-2009 | Front |
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
EBC-BSD553
More Information
Manufactured by
EBC Brakes
EAN
5050953042942
Warranty
EBC one year or 10,000 miles warranty
