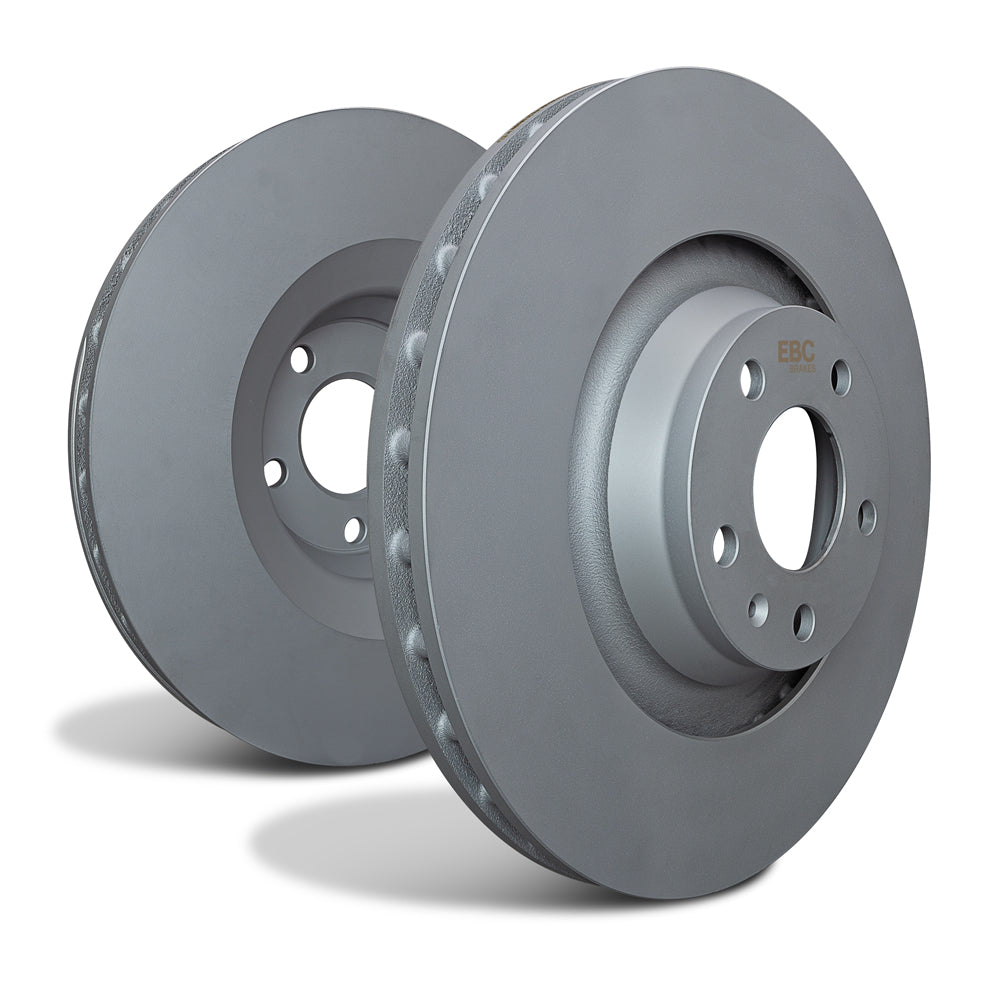

EBC D1942 Opel Vauxhall Standard Discs/Drums Front - Mando Caliper
EBC D1942 Opel Vauxhall Standard Discs/Drums Front - Mando Caliper
Couldn't load pickup availability
Description
Surely the best aftermarket discs on sale anywhere, EBC Brakes offer OEM quality replacement discs made to the exact same spec as original parts using G3000 grey iron. Thermic black coated to prevent corrosion.
Precision machined, balanced and 100% ONE BY ONE runout inspected to guarantee zero rotor distortion out of the box.
The quality and price point of the EBC Brakes discs combined with the 10,000 mile/6 months unconditional warranty make EBC Brakes a best buy brake part equal to or better than original parts.
Always fit new pads when replacing discs.
Features
| Disc Type | : | Plain |
| Solid or Vented? | : | V |
| Disc Bolts | : | 5 |
| Disc Diameter | : | 321mm |
| Disc Height | : | 46mm |
| Disc Thickness New | : | 30mm |
| Disc Thickness Min | : | 27mm |
What's Included
- 2 x Brake Disc
Compatibility
| Model | Sub-Model | Engine | BHP | Year | Position |
| Astra (J) | - | 2.0 TD | 160 | 2012-2015 | Front |
| Astra (J) | - | 2.0 Twin TD | 194 | 2012-2015 | Front |
| Astra GTC (J) | - | 1.4 | 100 | 2011-2014 | Front |
| Astra GTC (J) | - | 1.4 Turbo | 120 | 2011-2014 | Front |
| Astra GTC (J) | - | 1.4 Turbo | 140 | 2011-2014 | Front |
| Astra GTC (J) | - | 1.6 Turbo | 170 | 2012-2013 | Front |
| Astra GTC (J) | - | 1.6 Turbo | 180 | 2011-2013 | Front |
| Astra GTC (J) | - | 1.6 Turbo | 200 | 2012-2014 | Front |
| Astra GTC (J) | - | 1.8 | 140 | 2011-2013 | Front |
| Astra GTC (J) | - | 1.7 TD | 110 | 2011-2014 | Front |
| Astra GTC (J) | - | 1.7 TD | 130 | 2011-2014 | Front |
| Astra GTC (J) | - | 2.0 TD | 165 | 2011-2014 | Front |
| Astra GTC (J) | - | 2.0 Twin TD | 194 | 2012-2014 | Front |
| Cascada | - | 1.4 Turbo | 120 | 2013-2019 | Front |
| Cascada | - | 1.4 Turbo | 140 | 2013-2019 | Front |
| Cascada | - | 1.6 Turbo | 170 | 2013-2019 | Front |
| Cascada | - | 1.6 Turbo | 200 | 2014-2019 | Front |
| Cascada | - | 2.0 TD | 165 | 2013-2019 | Front |
| Cascada | - | 2.0 Twin TD | 195 | 2013-2019 | Front |
| GTC (J) | - | 1.4 Turbo | 120 | 2014-2018 | Front |
| GTC (J) | - | 1.4 Turbo | 140 | 2014-2018 | Front |
| GTC (J) | - | 1.6 Turbo | 200 | 2014-2018 | Front |
| GTC (J) | - | 1.6 TD | 110 | 2014-2018 | Front |
| GTC (J) | - | 1.6 TD | 136 | 2014-2018 | Front |
| GTC (J) | - | 2.0 TD | 165 | 2014-2018 | Front |
| GTC (J) | - | 2.0 Twin TD | 194 | 2014-2016 | Front |
| Zafira Tourer | - | 1.4 Turbo | 120 | 2011-2019 | Front |
| Zafira Tourer | - | 1.4 Turbo | 140 | 2011-2019 | Front |
| Zafira Tourer | - | 1.6 Turbo | 150 | 2011-2019 | Front |
| Zafira Tourer | - | 1.6 Turbo | 170 | 2013-2019 | Front |
| Zafira Tourer | - | 1.6 Turbo | 200 | 2014-2019 | Front |
| Zafira Tourer | - | 1.8 | 115 | 2011-2019 | Front |
| Zafira Tourer | - | 1.8 | 140 | 2011-2019 | Front |
| Zafira Tourer | - | 1.6 TD | 120 | 2014-2019 | Front |
| Zafira Tourer | - | 1.6 TD | 136 | 2013-2019 | Front |
| Zafira Tourer | - | 2.0 TD | 110 | 2011-2019 | Front |
| Zafira Tourer | - | 2.0 TD | 130 | 2011-2019 | Front |
| Zafira Tourer | - | 2.0 TD | 160 | 2011-2019 | Front |
| Zafira Tourer | - | 2.0 Twin TD | 195 | 2011-2019 | Front |
| Model | Sub-Model | Engine | BHP | Year | Position |
| Astra (J) | - | 2.0 TD | 160 | 2012-2015 | Front |
| Astra (J) | - | 2.0 Twin TD | 192 | 2012-2015 | Front |
| Astra GTC (J) | - | 1.4 | 100 | 2011-2014 | Front |
| Astra GTC (J) | - | 1.4 Turbo | 120 | 2011-2014 | Front |
| Astra GTC (J) | - | 1.4 Turbo | 140 | 2011-2014 | Front |
| Astra GTC (J) | - | 1.6 Turbo | 170 | 2012-2013 | Front |
| Astra GTC (J) | - | 1.6 Turbo | 180 | 2011-2013 | Front |
| Astra GTC (J) | - | 1.6 Turbo | 200 | 2012-2014 | Front |
| Astra GTC (J) | - | 1.8 | 140 | 2011-2013 | Front |
| Astra GTC (J) | - | 1.7 TD | 110 | 2011-2014 | Front |
| Astra GTC (J) | - | 1.7 TD | 130 | 2011-2014 | Front |
| Astra GTC (J) | - | 2.0 TD | 165 | 2011-2014 | Front |
| Astra GTC (J) | - | 2.0 Twin TD | 194 | 2012-2014 | Front |
| Cascada | - | 1.4 Turbo | 120 | 2013-2019 | Front |
| Cascada | - | 1.4 Turbo | 140 | 2013-2019 | Front |
| Cascada | - | 1.6 Turbo | 170 | 2013-2019 | Front |
| Cascada | - | 1.6 Turbo | 200 | 2014-2019 | Front |
| Cascada | - | 2.0 TD | 165 | 2013-2019 | Front |
| Cascada | - | 2.0 Twin TD | 190 | 2013-2019 | Front |
| GTC (J) | - | 1.4 Turbo | 120 | 2014-2018 | Front |
| GTC (J) | - | 1.4 Turbo | 140 | 2014-2018 | Front |
| GTC (J) | - | 1.6 Turbo | 200 | 2014-2018 | Front |
| GTC (J) | - | 1.6 TD | 110 | 2014-2018 | Front |
| GTC (J) | - | 1.6 TD | 136 | 2014-2018 | Front |
| GTC (J) | - | 2.0 TD | 165 | 2014-2018 | Front |
| GTC (J) | - | 2.0 Twin TD | 194 | 2014-2016 | Front |
| Zafira Tourer | - | 1.4 Turbo | 140 | 2012-2018 | Front |
| Zafira Tourer | - | 1.6 Turbo | 150 | 2012-2018 | Front |
| Zafira Tourer | - | 1.6 Turbo | 170 | 2013-2018 | Front |
| Zafira Tourer | - | 1.6 Turbo | 200 | 2014-2018 | Front |
| Zafira Tourer | - | 1.8 | 115 | 2012-2018 | Front |
| Zafira Tourer | - | 1.8 | 140 | 2012-2018 | Front |
| Zafira Tourer | - | 1.6 TD | 136 | 2013-2018 | Front |
| Zafira Tourer | - | 2.0 TD | 130 | 2012-2018 | Front |
| Zafira Tourer | - | 2.0 TD | 160 | 2012-2018 | Front |
| Zafira Tourer | - | 2.0 Twin TD | 195 | 2012-2018 | Front |
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
EBC-D1942
More Information
Manufactured by
EBC Brakes
EAN
5050953817212
Warranty
EBC one year or 10,000 miles warranty
