EBC BRAKES
EBC P2DK063Y BMW Yellowstuff Full Vehicle Kit
EBC P2DK063Y BMW Yellowstuff Full Vehicle Kit
Couldn't load pickup availability
Description

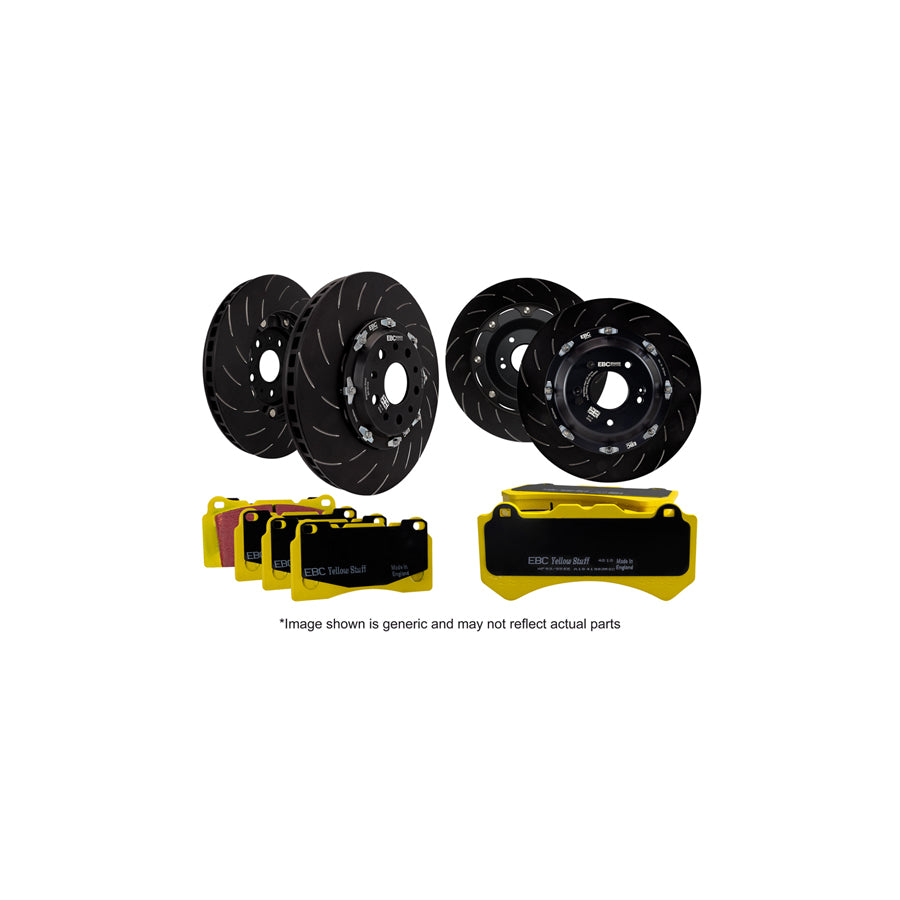

EBC's fully-floating 2-piece brake discs combined with our high performance Yellowstuff pads represents the ultimate braking upgrade for high powered vehicles driven fast on road or participating in the occasional trackday. EBC's famous Yellowstuff material has a high cold friction level, boasts excellent pedal 'feel' and exhibits superior fade resistance compared to OEM parts. Yellowstuff pads offer a depth of precision and control most other brake pads could only dream of, yet they achieve this high level of performance without sacrifices in noise level or wheel dusting. No wonder Yellowstuff is one of the most popular performance road pad choices among driving enthusiasts the world over. EBC racings 2pc fully-floating brake discs are engineered from the finest materials without compromise, resulting in one of the highest quality 2-piece brake discs available on today's marketplace.
These discs are equally at home on the road or at the race track. Outer friction rings are cast from high-carbon G3500 disc alloy, giving excellent wear properties and crack resistance even after heavy on-track use. EBC's patented stainless steel SD-Drive bobbins allow the braking ring to float freely and independently of the centre bell, reducing stresses and eliminating the chance of warping, whilst each bobbin location features an anti-rattle clip for totally silent operation. All discs feature 48 curved vanes and are handed to each side of the car allowing effective heat dissipation. EBC 2-Piece discs often offer a weight saving over OEM parts, helping to reduce rotational un-sprung mass that has a positive effect on driving dynamics. Additionally, when the disc eventually becomes worn, the hub can be retained replacing only the outer friction ring which reduces long term operating costs
Features
| Front Pad A Dimensions | : | 182.6 x 99 x 19.1mm |
| Front Disc Type | : | Grooved |
| Front Solid or Vented | : | V |
| Front Bolt Holes | : | 5 |
| Front Disc Diameter | : | 380mm |
| Front Disc Thickness New | : | 34mm |
| Front Disc Thickness Min | : | 36mm |
| Rear Pad A Dimensions | : | 116.1 x 72.5 x 18mm |
| Rear Disc Type | : | Grooved |
| Rear Solid or Vented | : | V |
| Rear Bolt Holes | : | 5 |
| Rear Disc Diameter | : | 370mm |
| Rear Disc Thickness New | : | 22mm |
| Rear Disc Thickness Min | : | 24mm |
| Kit Components | : | SG2F022 + DP42454R + SG2F026 + DP42089R |
Compatibility
| Model | Sub-Model | Engine | BHP | Year | Position |
| M3 | G80 | 3 Twin Turbo | 480 | 2022 | - |
| M3 | G80 | 3 Twin Turbo | 480 | 2021 | - |
| M3 Competition | G80 | 3 Twin Turbo | 510 | 2022 | - |
| M3 Competition | G80 | 3 Twin Turbo | 510 | 2021 | - |
| M4 | G82 | 3 Twin Turbo | 480 | 2022 | - |
| M4 | G82 | 3 Twin Turbo | 480 | 2021 | - |
| M4 Competition | G82 | 3 Twin Turbo | 510 | 2022 | - |
| M4 Competition | G82 | 3 Twin Turbo | 510 | 2021 | - |
| M4 Competition Convertible | G83 | 3 Twin Turbo | 510 | 2022 | - |
| M4 Competition Convertible | G83 | 3 Twin Turbo | 510 | 2021 | - |
| M4 Convertible | G83 | 3 Twin Turbo | 480 | 2022 | - |
| M4 Convertible | G83 | 3 Twin Turbo | 480 | 2021 | - |
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
EBC-P2DK063Y
More Information
Manufactured by
EBC Brakes
Warranty
EBC one year or 10,000 miles warranty
