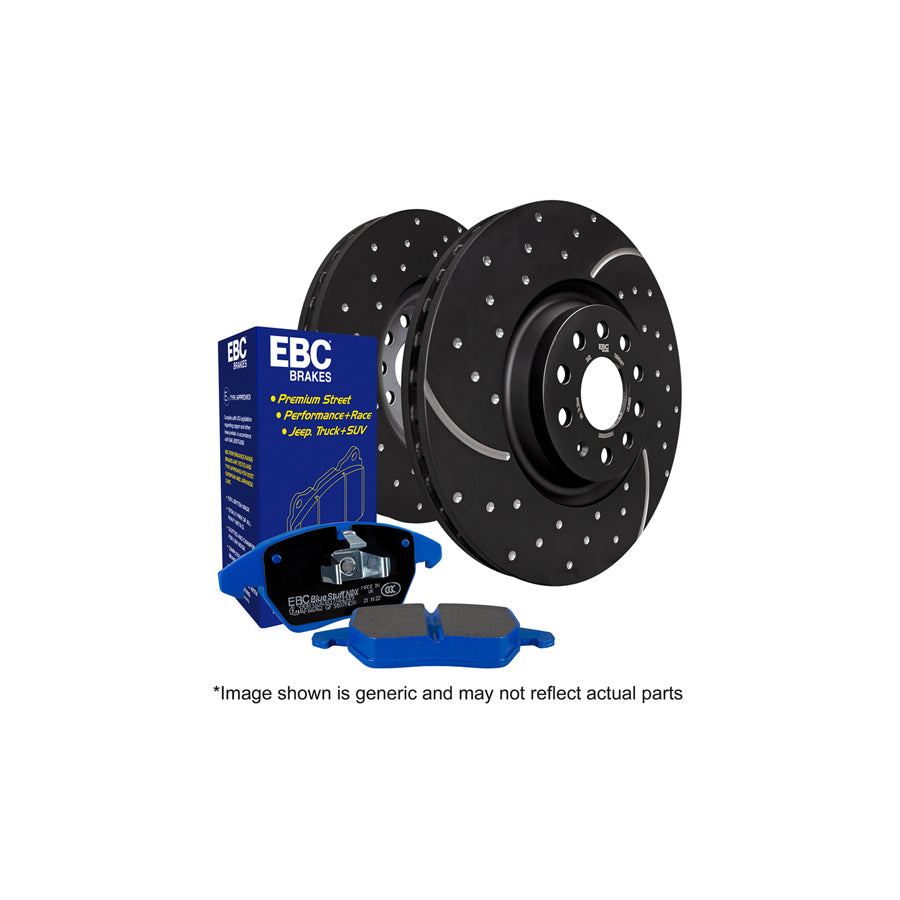

EBC PD14KF494 BMW Bluestuff Front Brake Pad & GD Disc Kit - ATE Caliper
EBC PD14KF494 BMW Bluestuff Front Brake Pad & GD Disc Kit - ATE Caliper
Tax included.
Couldn't load pickup availability
Description
- Kit contains one set of Bluestuff brake pads and one pair of GD slotted and dimpled brake discs
- Money saving brake kit including one set of pads and a pair of discs
- Bluestuff 5000 NDX race formula ultra high friction race pad with a friction level peaking above 0.6 under braking that will generate more G force than most, if not all pads out there
- NDX is capable of street use as it bites well from cold Pre-bedded out of the box, surface is heat seared or scorched at the factory
- Pair of slotted and dimpled upgrade brake discs with grooves that are designed to dispel gasses and debris
One pair of slotted and dimpled upgrade brake discs. Wide slots and blind drilled dimples are designed to dispel gasses and debris. Manufactured from unique disc alloys and thermic black coated for corrosion resistance. These discs are runout tested.
Features
| Pad A Dimensions | : | 155 x 68 x 20 |
| Pad B Dimensions | : | 155 x 68 x 20 |
| Disc Type | : | Grooved |
| Solid or Vented? | : | V |
| Disc Bolts | : | 5 |
| Disc Diameter | : | 312mm |
| Disc Height | : | 74mm |
| Disc Thickness New | : | 24mm |
| Disc Thickness Min | : | 24mm |
| Kit Components | : | DP51512NDX + GD1663 |
Compatibility
| Model | Sub-Model | Engine | BHP | Year | Position |
| 3 Series (E90) | 320 | 2.0 TD | - | 2007-2010 | Front |
| 3 Series (E90) | 320 | 2.0 TD | - | 2010-2012 | Front |
| 3 Series (E90) | 320 | 2 | 170 | 2007-2010 | Front |
| 3 Series (E90) | 320 | 2 | - | 2010-2012 | Front |
| 3 Series (E90) | 325 | 2.5 | - | 2007-2010 | Front |
| 3 Series (E90) | 325 | 2.5 | - | 2010-2012 | Front |
| 3 Series (E90) | 325 Sport | 2.5 | - | 2010-2012 | Front |
| 3 Series (E90) | 325 | 3 | - | 2007-2010 | Front |
| 3 Series (E90) | 325 | 3 | - | 2010-2012 | Front |
| 3 Series (X 4WD E90) | 325 | 2.5 | - | 2005-2008 | Front |
| 3 Series (xDrive E90) | 320 | 2.0 TD | - | 2008-2012 | Front |
| 3 Series (xDrive E90) | 325 | 3 | - | 2008-2010 | Front |
| 3 Series (xDrive E90) | 325 | 3 | - | 2010-2012 | Front |
| 3 Series (E91) | 318 | 2.0 TD | 143 | 2007-2010 | Front |
| 3 Series (E91) | 318 | 2.0 TD | - | 2010-2012 | Front |
| 3 Series (E91) | 318 | 2 | - | 2007-2010 | Front |
| 3 Series (E91) | 318 | 2 | - | 2010-2012 | Front |
| 3 Series (E91) | 320 | 2.0 TD | - | 2007-2010 | Front |
| 3 Series (E91) | 320 | 2.0 TD | - | 2010-2012 | Front |
| 3 Series (E91) | 320 | 2 | - | 2007-2010 | Front |
| 3 Series (E91) | 320 | 2 | - | 2010-2012 | Front |
| 3 Series (E91) | 325 | 2.5 | - | 2007-2010 | Front |
| 3 Series (E91) | 325 | 2.5 | - | 2010-2012 | Front |
| 3 Series (E91) | 325 Sport | 2.5 | - | 2010-2012 | Front |
| 3 Series (E91) | 325 | 3 | - | 2007-2010 | Front |
| 3 Series (E91) | 325 | 3 | - | 2010-2012 | Front |
| 3 Series (X 4WD E91) | 325 | 2.5 | - | 2005-2008 | Front |
| 3 Series (X 4WD E91) | 325 | 3 | - | 2007-2008 | Front |
| 3 Series (xDrive E91) | 320 | 2.0 TD | - | 2010-2012 | Front |
| 3 Series (E92) | 320 | 2.0 TD | - | 2005-2010 | Front |
| 3 Series (E92) | 320 | 2.0 TD | - | 2010-2013 | Front |
| 3 Series (E92) | 320 | 2 | - | 2007-2013 | Front |
| 3 Series (E92) | 325 | 2.5 | - | 2007-2010 | Front |
| 3 Series (E92) | 325 | 2.5 | - | 2010-2013 | Front |
| 3 Series (X 4WD E92) | 325 | 2.5 | - | 2007-2008 | Front |
| 3 Series (xDrive E92) | 320 | 2.0 TD | - | 2010-2013 | Front |
| 3 Series (E93) | 320 | 2.0 TD | - | 2008-2010 | Front |
| 3 Series (E93) | 320 | 2.0 TD | - | 2010-2013 | Front |
| 3 Series (E93) | 320 | 2 | - | 2007-2008 | Front |
| 3 Series (E93) | 320 | 2 | - | 2008-2013 | Front |
| 3 Series (E93) | 325 | 2.5 | - | 2007-2013 | Front |
| 3 Series (E93) | 325 | 2.5 | - | 2010-2013 | Front |
| 3 Series (E93) | 325 | 3 | - | 2007-2010 | Front |
| 3 Series (E93) | 325 | 3 | - | 2010-2013 | Front |
| X1 (E84) | - | 2.0 (18) | 150 | 2010-2015 | Front |
| X1 (E84) | - | 2.0 Turbo (20) | 184 | 2011-2015 | Front |
| X1 (E84) | - | 2.0 Turbo (28) | 245 | 2012-2015 | Front |
| X1 (E84) | - | 2.0 TD (16d) | 116 | 2012-2015 | Front |
| X1 (E84) | - | 2.0 TD (18d) | 143 | 2010-2015 | Front |
| X1 (E84) | - | 2.0 TD (20d) | 177 | 2009-2011 | Front |
| X1 (E84) | - | 2.0 TD (20d) | 163 | 2011-2015 | Front |
| X1 (E84) | - | 2.0 TD (20d) | 184 | 2011-2015 | Front |
| X1 (E84) | - | 2.0 Twin TD (23d) | 204 | 2012-2015 | Front |
| X1 (E84) | - | 2.0 Twin TD (25d) | 215 | 2012-2015 | Front |
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
EBC-PD14KF494
More Information
Manufactured by
EBC Brakes
Warranty
EBC one year or 10,000 miles warranty
