EBC PD40K1427 Opel Vauxhall Ultimax Pad & Plain Disc Kit - Mando Caliper (Inc. Astra J & Cascada)
EBC PD40K1427 Opel Vauxhall Ultimax Pad & Plain Disc Kit - Mando Caliper (Inc. Astra J & Cascada)
Couldn't load pickup availability
Description

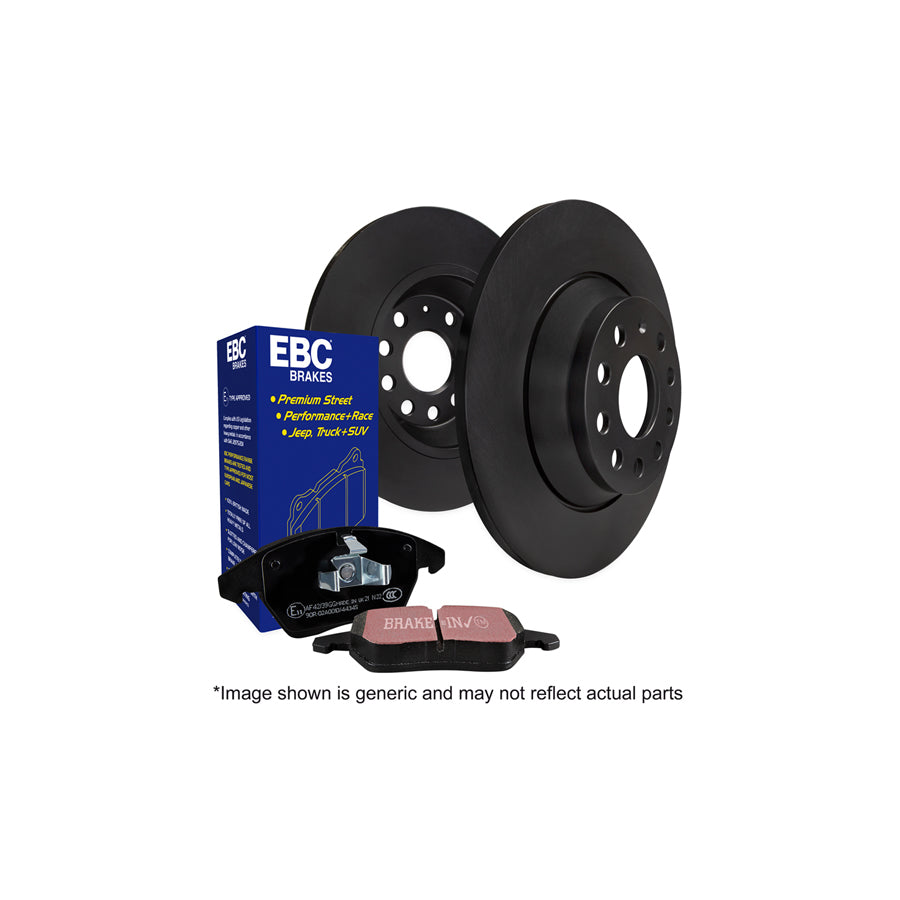

- Kit contains two sets of Ultimax brake pads and two sets of OE replacement brake discs
- Ultimax2 type approved brake pad sets
- Pads are designed for a long life with minimal dust
- Two pairs of OE quality replacement brake discs
Ultimax2 high quality OE replacement brake pads are manufactured in the UK and are type approved for your vehicle. Designed for long life with minimal dust and featuring Brake-In coating for faster bed-in.
Two pairs of premium OE quality replacement brake discs, precision cast from G3000 iron, surface ground with thermic black coating for corrosion resistance. These discs are runout tested and are an exact replacement for manufacturer discs.
This brake kit provides the perfect combination for general street use.
Features
| Front Pad A Dimensions | : | 142 x 67 x 19mm |
| Front Disc Type | : | Plain |
| Front Solid or Vented | : | V |
| Front Bolt Holes | : | 5 |
| Front Disc Diameter | : | 321mm |
| Front Disc Height | : | 46mm |
| Front Disc Thickness New | : | 30mm |
| Front Disc Thickness Min | : | 27mm |
| Rear Pad A Dimensions | : | 116.6 x 42.7 x 17.5mm |
| Rear Disc Type | : | Plain |
| Rear Solid or Vented | : | S |
| Rear Bolt Holes | : | 5 |
| Rear Disc Diameter | : | 292mm |
| Rear Disc Height | : | 45mm |
| Rear Disc Thickness New | : | 12mm |
| Rear Disc Thickness Min | : | 10mm |
| Kit Components | : | DPX2014 + D1942 + DPX2066 + D1750 |
Compatibility
| Model | Sub-Model | Engine | BHP | Year | Position |
| Astra (J) | - | 2.0 TD | 160 | 2012-2015 | Both |
| Astra (J) | - | 2.0 Twin TD | 194 | 2012-2015 | Both |
| Astra GTC (J) | - | 1.4 | 100 | 2011-2014 | Both |
| Astra GTC (J) | - | 1.4 Turbo | 120 | 2011-2014 | Both |
| Astra GTC (J) | - | 1.4 Turbo | 140 | 2011-2014 | Both |
| Astra GTC (J) | - | 1.6 Turbo | 170 | 2012-2013 | Both |
| Astra GTC (J) | - | 1.6 Turbo | 180 | 2011-2013 | Both |
| Astra GTC (J) | - | 1.6 Turbo | 200 | 2012-2014 | Both |
| Astra GTC (J) | - | 1.8 | 140 | 2011-2013 | Both |
| Astra GTC (J) | - | 1.7 TD | 110 | 2011-2014 | Both |
| Astra GTC (J) | - | 1.7 TD | 130 | 2011-2014 | Both |
| Astra GTC (J) | - | 2.0 TD | 165 | 2011-2014 | Both |
| Astra GTC (J) | - | 2.0 Twin TD | 194 | 2012-2014 | Both |
| Cascada | - | 1.4 Turbo | 120 | 2013-2019 | Both |
| Cascada | - | 1.4 Turbo | 140 | 2013-2019 | Both |
| Cascada | - | 1.6 Turbo | 170 | 2013-2019 | Both |
| Cascada | - | 1.6 Turbo | 200 | 2014-2019 | Both |
| Cascada | - | 2.0 TD | 165 | 2013-2019 | Both |
| Cascada | - | 2.0 Twin TD | 195 | 2013-2019 | Both |
| GTC (J) | - | 1.4 Turbo | 120 | 2014-2018 | Both |
| GTC (J) | - | 1.4 Turbo | 140 | 2014-2018 | Both |
| GTC (J) | - | 1.6 Turbo | 200 | 2014-2018 | Both |
| GTC (J) | - | 1.6 TD | 110 | 2014-2018 | Both |
| GTC (J) | - | 1.6 TD | 136 | 2014-2018 | Both |
| GTC (J) | - | 2.0 TD | 165 | 2014-2018 | Both |
| GTC (J) | - | 2.0 Twin TD | 194 | 2014-2016 | Both |
| Model | Sub-Model | Engine | BHP | Year | Position |
| Astra (J) | - | 2.0 TD | 160 | 2012-2015 | Both |
| Astra (J) | - | 2.0 Twin TD | 192 | 2012-2015 | Both |
| Astra GTC (J) | - | 1.4 | 100 | 2011-2014 | Both |
| Astra GTC (J) | - | 1.4 Turbo | 120 | 2011-2014 | Both |
| Astra GTC (J) | - | 1.4 Turbo | 140 | 2011-2014 | Both |
| Astra GTC (J) | - | 1.6 Turbo | 170 | 2012-2013 | Both |
| Astra GTC (J) | - | 1.6 Turbo | 180 | 2011-2013 | Both |
| Astra GTC (J) | - | 1.6 Turbo | 200 | 2012-2014 | Both |
| Astra GTC (J) | - | 1.8 | 140 | 2011-2013 | Both |
| Astra GTC (J) | - | 1.7 TD | 110 | 2011-2014 | Both |
| Astra GTC (J) | - | 1.7 TD | 130 | 2011-2014 | Both |
| Astra GTC (J) | - | 2.0 TD | 165 | 2011-2014 | Both |
| Astra GTC (J) | - | 2.0 Twin TD | 194 | 2012-2014 | Both |
| Cascada | - | 1.4 Turbo | 120 | 2013-2019 | Both |
| Cascada | - | 1.4 Turbo | 140 | 2013-2019 | Both |
| Cascada | - | 1.6 Turbo | 170 | 2013-2019 | Both |
| Cascada | - | 1.6 Turbo | 200 | 2014-2019 | Both |
| Cascada | - | 2.0 TD | 165 | 2013-2019 | Both |
| Cascada | - | 2.0 Twin TD | 190 | 2013-2019 | Both |
| GTC (J) | - | 1.4 Turbo | 120 | 2014-2018 | Both |
| GTC (J) | - | 1.4 Turbo | 140 | 2014-2018 | Both |
| GTC (J) | - | 1.6 Turbo | 200 | 2014-2018 | Both |
| GTC (J) | - | 1.6 TD | 110 | 2014-2018 | Both |
| GTC (J) | - | 1.6 TD | 136 | 2014-2018 | Both |
| GTC (J) | - | 2.0 TD | 165 | 2014-2018 | Both |
| GTC (J) | - | 2.0 Twin TD | 194 | 2014-2016 | Both |
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
EBC-PD40K1427
More Information
Manufactured by
EBC Brakes
Warranty
EBC one year or 10,000 miles warranty
