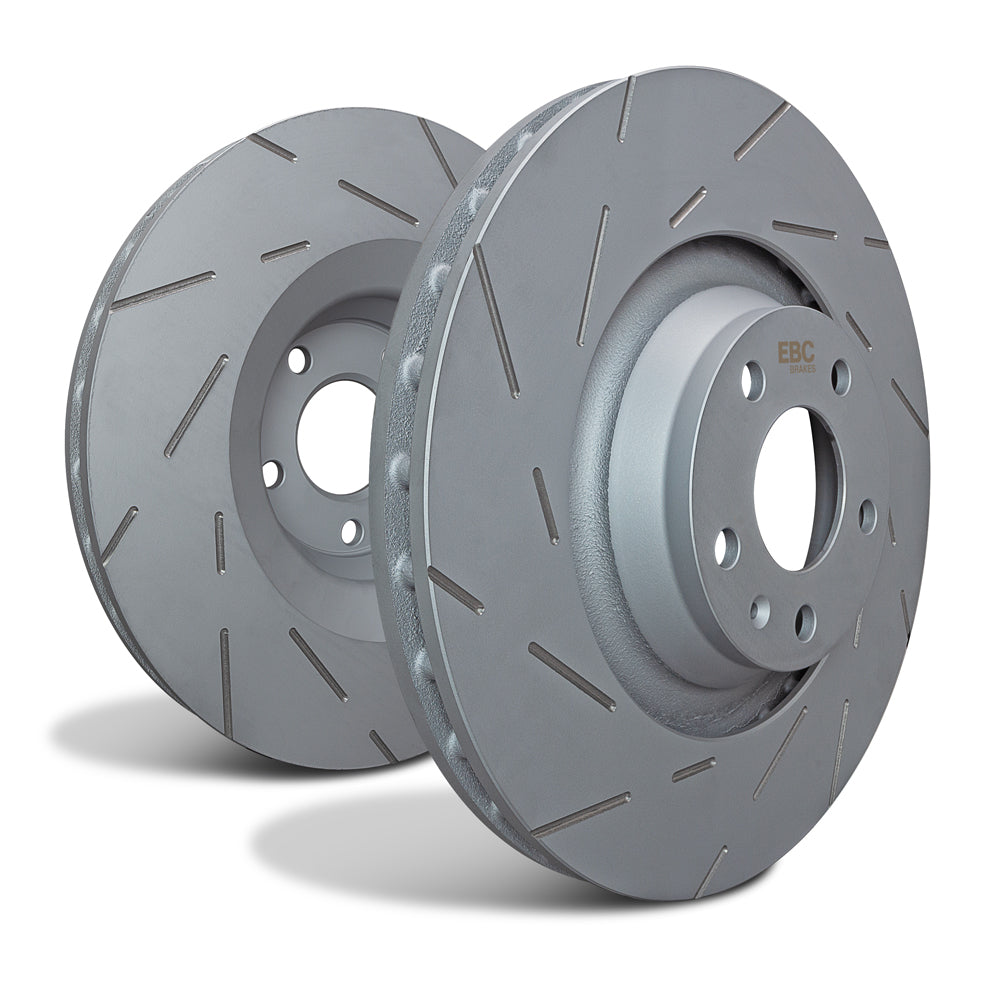

EBC USR1190 Grinnall Lotus Ultimax Grooved Discs Front/Rear - Girling/TRW/Brembo Caliper
EBC USR1190 Grinnall Lotus Ultimax Grooved Discs Front/Rear - Girling/TRW/Brembo Caliper
Couldn't load pickup availability
Description
Super quiet sport slotted brake discs featuring the new EBC Brakes narrow profile slot pattern which helps cool and de-gas brakes under load and speed but eliminates air noise common with some slotted discs.
Thermic black coated in the UK, leaving your discs looking like new for thousands of miles.
The price you see is for TWO DISCS, one left one right.
Another great feature of slotted discs is the way they MAINTAIN FLAT AND PARALLEL PAD WEAR and avoid the record grooves or galling common with non-slotted discs.
This improves pad contact and braking throughout the life of the disc and pad set.
Another major benefit of the EBC Brakes fine slotted discs is their ability to totally resist cracking common with 'through-drilled' discs.
Features
| Disc Type | : | Slotted |
| Solid or Vented? | : | V |
| Disc Bolts | : | 4 |
| Disc Diameter | : | 288mm |
| Disc Height | : | 45mm |
| Disc Thickness New | : | 26mm |
| Disc Thickness Min | : | 24mm |
| PCD | : | 100mm |
| Center Hole Diameter | : | 60mm |
What's Included
- 2 x Brake Disc
Compatibility
| Model | Sub-Model | Engine | BHP | Year | Position |
| Scorpion 4 | - | 1.8 Turbo | - | 2005-2021 | Front |
| Scorpion 4 | - | 1.8 Turbo | - | 2005-2021 | Rear |
| Model | Sub-Model | Engine | BHP | Year | Position |
| 2-Eleven | - | 1.8 | - | 2007-2011 | Front |
| 2-Eleven | - | 1.8 | - | 2007-2011 | Rear |
| 2-Eleven | - | 1.8 Supercharged | - | 2007-2011 | Front |
| 2-Eleven | - | 1.8 Supercharged | - | 2007-2011 | Rear |
| Elise | Series 2 | 1.8 | 120 | 2001-2005 | Front |
| Elise | Series 2 | 1.8 | 120 | 2001-2005 | Rear |
| Elise | Series 2 | 1.8 | 135 | 2001-2011 | Front |
| Elise | Series 2 | 1.8 | 135 | 2001-2011 | Rear |
| Elise | Series 2 | 1.8 | 160 | 2002-2011 | Front |
| Elise | Series 2 | 1.8 | 160 | 2002-2011 | Rear |
| Elise | Series 2 | 1.8 | 190 | 2002-2011 | Front |
| Elise | Series 2 | 1.8 | 190 | 2002-2011 | Rear |
| Elise | Series 2 | 1.8 Supercharged | 220 | 2007-2011 | Front |
| Elise | Series 2 | 1.8 Supercharged | 220 | 2007-2011 | Rear |
| Elise | Series 3 | 1.6 | 135 | 2010-2018 | Front |
| Elise | Series 3 | 1.6 | 135 | 2010-2018 | Rear |
| Elise | Series 3 | 1.8 | 190 | 2010-2021 | Front |
| Elise | Series 3 | 1.8 | 190 | 2010-2021 | Rear |
| Elise | Series 3 | 1.8 Supercharged | 220 | 2010-2021 | Front |
| Elise | Series 3 | 1.8 Supercharged | 220 | 2010-2021 | Rear |
| Elise | Series 3 | 1.8 Supercharged | 250 | 2010-2021 | Front |
| Elise | Series 3 | 1.8 Supercharged | 250 | 2010-2021 | Rear |
| Elise | Series 3 | 1.8 Supercharged | 260 | 2010-2021 | Front |
| Elise | Series 3 | 1.8 Supercharged | 260 | 2010-2021 | Rear |
| Europa | - | 2.0 Turbo | 200 | 2006-2010 | Front |
| Europa | - | 2.0 Turbo | 200 | 2006-2010 | Rear |
| Exige | Series 1 | 1.8 | 177 | 2001-2003 | Front |
| Exige | Series 1 | 1.8 | 177 | 2001-2003 | Rear |
| Exige | Series 1 | 1.8 | 190 | 2001-2003 | Front |
| Exige | Series 1 | 1.8 | 190 | 2001-2003 | Rear |
| Exige | Series 2 | 1.8 | 190 | 2004-2008 | Front |
| Exige | Series 2 | 1.8 | 190 | 2004-2008 | Rear |
| Exige | Series 2 | 1.8 Supercharged | 220 | 2005-2007 | Front |
| Exige | Series 2 | 1.8 Supercharged | 220 | 2005-2007 | Rear |
Compatibility Check
To ensure the part(s) you have ordered fits your vehicle, we run a compatibility check prior to dispatch. We can do this either using your registration number (UK) or the last 7 digits of your VIN. Simply enter your car details prior to checkout.
Part Number
EBC-USR1190
More Information
Manufactured by
EBC Brakes
EAN
5050953016240
Warranty
EBC one year or 10,000 miles warranty
